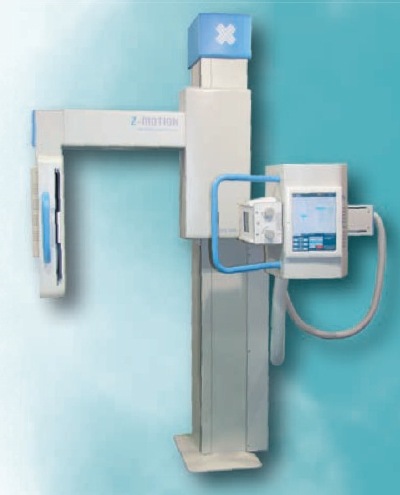

Z-MOTION
Universal Digital
Stand provides a
new approach for
practitioners to
employ digital fl at
panel technology.
The stand is fully
motorized and
counterbalanced,
though for quick
changes the
stand can be
easily positioned
in seconds
manually when
releasing the
brakes.
down on a mobile table.
The unique system design preserves the alignment between
the collimator and digital receptor in any position.
With an SID range of 100 to 200cm (39.5” to 79”), Z-Motion
offers a variety of examination possibilities. Once the desired
position is achieved, electromagnetic brakes fi rmly lock the
arm in place.
radiographic table or gurney placed between the x-ray tube
and receptor. Minimal SID for lateral exposures using a 65
cm (25”) wide trolley is 100 cm (39,5”).
A TO Z, from Apex TO ZMotion
With Apex and Z-Motion you get a full package, from A to Z.
All of the benefi ts of DR are now available with APEX - an affordable digital imaging solution with fl atpanel
DR technology.

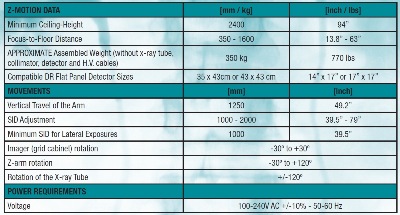

Main additional features vs. similar products:
Fully counter-balanced, motorized and manual adjustment of the stand
Covers full radiographic SID needs: 1000 – 2000 mm (39,5” – 79”)
Low room ceiling heights required: 240 cm (7’-10”)
100 cm (39,5”) SID for lateral table shots

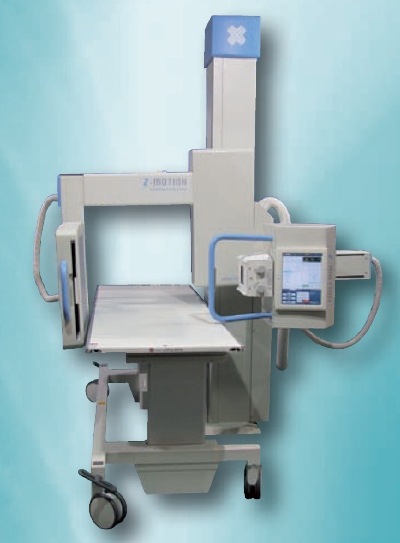

Vertical exposures over a radiographic table can easily be
achieved. The Z-Motion digital stand requires less than
240 cm (7’-10”) ceiling height for table exposures with a
table top height of 75 cm (30”).
A compact solution for all general radiographic
projectors
In a matter of seconds, Z-Motion can be set to perform oblique
exposures. Oblique exposures are possible on standing and
sitting patients, or when using a patient trolley as well.
Motorized, automatic patient positioning is seamlessly
integrated into the user-friendly control software. The number
of programs and requested positions are to be determined
during installation. In addition, a remote control is provided
for specialised positioning.
Z-Motion is easily adjustable for chest, skull, extremities and
similar exposures. Adjusting SID and focus heights is simple
with user-friendly controls.
SID is adjustable between 100 cm (39,5”) and 200 cm (79”)
Lateral exposures can be performed with a portable
radiographic table or gurney placed between the x-ray tube
and receptor. Minimal SID for lateral exposures using a 65
cm (25”) wide trolley is 100 cm (39,5”).
