Analog Systems That Mean Business.

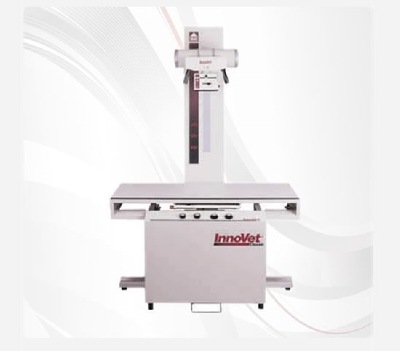

Classic

Ideal for the budget-minded and/or floor space restricted facility.

Since 1995, the InnoVet Classic has been the #1 selling veterinarian x-ray machine in the U.S. Over 3,000 InnoVet Classic’s currently satisfy the general radiographic needs of budget minded or space-restricted practices.

The classic features a full-size table top, a tilt-out control, and a 300 mA / 125 kVp generator all packaged in the industry’s smallest floor space requirement of 28” x 53”.

Integrated 60 Hz GeneratorkVp range: 40 - 125, 64 selections mA stations: 100S, 300L Timer range: 1/120th - 1 second, 18 selections mAs range: .8 - 300 mAs Digital mAs readout Digital kVp readout Digital diagnostic readout Tilt-out control panel Built-in tube protection Adjustable volume, audible exposure signal SCR contactor UL classified

Table / TubestandEnclosed, integrated radiographic table Table top: 53 in. x 24 in. Welded base construction Grid cabinet with manual cassette tray Grid: 8:1 ratio, 103 LPI Grid cabinet / tubestand interlock Angulation dial and operator handgrips UL classified

X-Ray Tube C4581.0 - 2.0 mm F.S., 140,000 heat units

Cables C600-1010 ft. high voltage cables with federal terminations

Collimator G800Manual collimator with light field Field light “on” time - selectable 30, 60, 90 or 120 seconds Long life "soft-start" bulb circuits Easy-to-operate with gloves on Exceeds federal standards for radiation leakage protection for medical systems

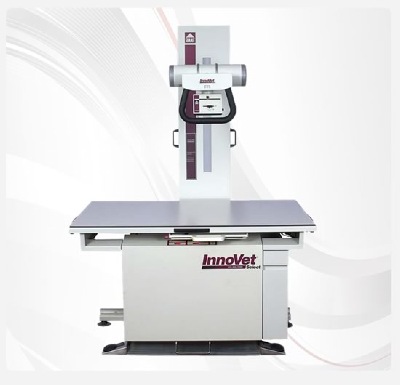

InnoVet Select

Customize this InnoVet to your exact radiographic and budgetary needs.

The InnoVet Select is a special version of the Classic, which allows for customization by the end user. By selecting from over 15 options, you may tailor the system to meet your specific needs and at the same time avoid paying for unwanted features. In recent years, the average InnoVet Select featured 5.3 options and sold for a price $2,900 less than a fully-loaded system.

Examples of popular InnoVet Select options include:
A 300 mA high frequency generator that is 30% more powerful than standard frequency.An upgrade of the 300 mA high frequency generator to an even more powerful 500 mA.A 2-way or 4-way float top table.One or two easy – access cassette bins.The "no-hands" collimator system.An anatomically programmed console.
Whichever options you may choose, you are sure to find them to be valuable, easy to use additions to your InnoVet Select.

Integrated 60 Hz GeneratorkVp range: 40 - 125, 64 selections mA stations: 100S, 300L Timer range: 1/120th - 1 second, 18 selections mAs range: .8 - 300 mAs Digital mAs readout Digital kVp readout Digital diagnostic readout Tilt-out control panel Built-in tube protection circuits Adjustable volume, audible exposure signal Automatic generator “Shut Off” circuit* SCR contactor UL classified

Table / TubestandEnclosed, integrated radiographic table Table top: 53 in. x 24 in. Welded base construction Transformer mounting shelf* Grid cabinet with Simplex™ cassette tray* Grid: 8:1 ratio, 103 LPI Grid cabinet / tubestand interlock Animal restraining device* Angulation dial and deluxe operator handgrips* Tubestand handles* UL classified

X-Ray Tube C4581.0 - 2.0 mm F.S., 140,000 heat units

Cables C600-1010 ft. high voltage cables with federal terminations

Collimator G800Manual collimator with light field Swivel mount* Field light “on” time - selectable 30, 60, 90 or 120 seconds Long life "soft-start" bulb circuits Spare collimator bulb* Easy-to-operate with gloves on Exceeds federal standards for radiation leakage protection for medical systems

Exposure Switch A981Foot switch with 20 ft. cord

Generator OptionsAdditional mA station, specify 30 mA or 400 mA High Frequency (HF) generator, 30KW, 300mA, 125kVp, in lieu of 60 Hz generator Anatomical programmed console tube-mounted500 mA generator upgrade, including step-up transformer(Eight mA stations: 50S, 100S, 200L, 300L, 350L, 400L, 450L, 500L) 500 mA and anatomical programmed console together Step-up transformer L246 for line voltages measuring 200 - 229 VAC Exposure foot treadle with latching prep circuit K241 in lieu of foot switch Wall mounted, remote hand operated exposure switch W413 in lieu of foot switch

Table / Tray OptionsTwo-way float-top table, 58 in. x 32 in. with +/- 4 in. transverse travel Four-way float-top table, 67 in. x 32 in. with +/- 4 in. transverse and longitudinal travel Extended length for float-top table, 67 in. Stationary table top extension, 12 in., specify left or right, W414 Standard manual cassette tray B144 in lieu of Simplex™ trayCassette storage bin and accessory drawer, specify left, right or both (price per bin), K827Table-top fluid trough

Tube / Collimator Options"No-hands" collimator light system, K262 Upgrade tube to 0.6 - 1.5 mm F.S., 200,000 heat units, E411


*Not available or optional on InnoVet Classic systems

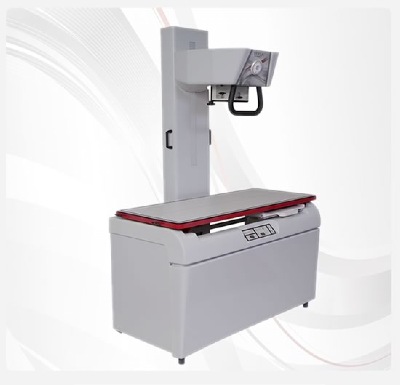

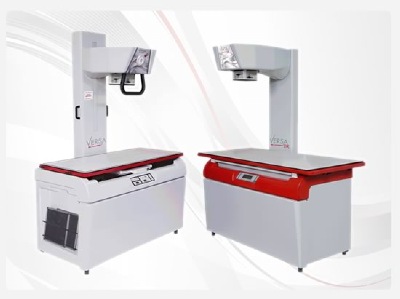

Versa

Versa is the premiere x-ray system for a practice that plans on upgrading to digital imaging in the future.

A broad table design and high-frequency generator can accommodate almost any DICOM compliant digital receptor. So no additional space is required.

Versa also comes with an easy-to-use cassette tray that fits a range of cassettes.

Our unique collimator is easy to operate with gloved hands and also meets the Federal radiation leakage requirement for human applications.

The x-ray tube can be lowered to table height and turned a full 90 degrees for standing lateral exams.

The x-ray tube and cassette tray move in tandem across the entire length of the table so you can adjust the central ray, not the patient.
