Standard Definition Medical Video Recorder The MediCap USB200 lets you easily record DVD-quality
video and still images from your existing medical imaging equipment. It
works with ultrasounds, endoscopes, intraoral cameras, surgical
microscopes, etc.
Record Video and Images at the Touch of a Button The USB200 is very easy to use. No special training or
installation is needed. Plug the USB200 into your imaging equipment and
press a button or tap a footswitch to start saving video and still
images - it's that simple! Your video and images are saved to a
convenient USB flash drive. Remove the drive from the USB200 and insert
it in the USB connector on your laptop or PC. It's a snap to transfer
the captured files and start harnessing the power of digital imaging.
The Easy Way to Go Digital With the USB200, you're no longer limited to paper or
film-based images - and you can stop fussing with clumsy VCRs and DVD
recorders. Now you can easily archive digital images and videos right on
your hard drive or on a secure network. You can enhance them, edit
them, email them, include them in patient reports, etc.
Device
Type
Medical Video Recorder
Records video and still images in standard defintion
from medical video sources
Media Records to USB flash drive
(included) or
USB hard drive (not included)
Case
Rugged metal case with high-impact
plastic faceplate
Monitor
2 1/2” LCD (for video confirmation
only;
not for diagnosis)
Speaker
200Hz-15KHz, 1W (for audio
confirmation
only, not for diagnosis)

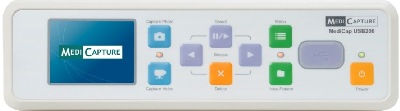

Buttons
Sealed membrane, fluid resistant

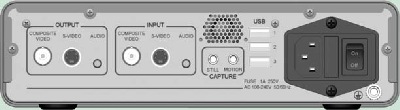

Video
In/Out
PAL or NTSC
S-video or composite BNC connections
Audio
In/Out
3.5mm stereo phone jacks
Video
Format
MPEG-2 (DVD-quality)
Audio
Format
MPEG-1 L2, 2 channels
Formats
JPG, TIF, PNG, DICOM
Size
1280 x 1024, 1024 x 768, 800 x
600, 640 x 480 pixels
USB
Support
USB2.0, high speed,
1 front connector, 3 rear connectors
Networking
Ethernet T10/100 connection via
Network Upgraded Kit (optional)
Footswitch/
Trigger Support
Standard 3.5mm mini jacks
(one for photos, one for videos)
(footswitches optional)
Mechanical
Size: 240 x 200 x 63mm / 9.5 x 7.9
x 2.5”
Weight: 1.7kg / 3lb 12oz
Environmental
Storage: -40° to +85° C
Operating: -20° to +40° C
Power
AC 100-240V 50/60Hz 20W
3-prong AC jack
Certifications
CE 93/42/EEC, UL 60601-1,
IEC 60601-1, IEC 60601-1-2, PSE,
CSA C22.2 No.601.1, E 306417,
FCC Part 15, FDA Class 1, RoHS, GOST-R
Kit
Contents
MediCap USB200
USB flash drive
Power cable
Video cables
User guide
