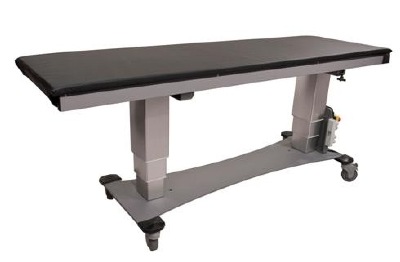

DTPM300


2 Powered Motions / 1 Manual Motion

Motions: Powered Height, Powered Trendelenburg tilt, Manual Longitudinal travel

Patient Weight Capacity: 450 lbs

Best height range of 24" to 40"

+/- 14 ° trendelenburg and reverse trendelenburg tilt

23" manual longitudinal travel 24"x78" Radiolucent Top

Robust Dual Lift Tower Design with 40" distance between towers

450 lbs patient weight capacity

Compatible with all major C-arm products

4 Year Warranty

BIODEX

Pain Management C-Arm Table

Designed for procedures where stability, access, and precise, quiet, vibration-free positioning are essential, the Pain Management C-Arm Table is excellent for image-guided procedures. A cantilevered low attenuation carbon fiber tabletop accommodates portable or ceiling-suspended C-Arms. The radiolucent area is free of cross members, allowing full fluoroscopic visualization and unobstructed C-Arm positioning. Functional design provides complete access with reduced radiation exposure to clinicians. Patient comfort and stability are assured by two-inch thick table padding and three adjustable straps with Velcro® hook and loop fastening. A face cutout is provided for prone positioning.


  • Low attenuation carbon fiber tabletop, with innovative contour design
  • High-speed actuators assure quick, three axis motorized tabletop positioning
  • Convenient positioning controllers
  • Smooth starts and stops programmed into all motorized movements
  • 500-lb patient capacity
  • Face cutout for comfortable prone positioning
  • Low profile base for C-Arm clearance
  • Accessory rails

Specifications:

Dimensions: 93" l x 26" w (233 x 66 cm) with OR accessory rails

Tabletop: 90" l x 24" w (228.6 x 61 cm)

Radiolucent Area:
- 60" l x 24" w (152.4 x 61 cm) unobstructed head to accessory rail
- 4" l x 17.5" w (10.1 x 44 cm) additional, between accessory rails

Radiolucent Area, Total Length: 64" l (160 cm)

Tabletop Material: Carbon fiber with integral head section

Mattress: 2" thick (5 cm)

Attenuation:
- Tabletop: .7 mm Aluminum equivalence
- Mattress: .5 mm Aluminum equivalence

Motions:
- Height Adjustable: 30" to 40" (75 to 100 cm)
- Trendelenburg: 0° to 20°
- Reverse Trendelenburg: 0° to 20°
- Lateral Roll: 0° to 20°

Controls:
- Hand Control: activates height, lateral roll and Trendelenburg motions

Optional:
- Foot Control: activates height, lateral roll and - Trendelenburg motions

Wheels:
- Head End – 3" (7.62 cm) swivel casters, integral locking system on base
- Foot End – 5" (12.7 cm) swivel casters with central locking

Accessory Rails:
 Standard OR accessory rails 30" x 1.12" x .375"
(75 x 2.86 x .95 cm) mounted near foot end of table

Patient Restraints: Three body straps

Finish: Powder coat

Patient Capacity: 500 lb (227 kg); weight tested to four times the patient load rating.

Lift Capacity:
May vary between 460 lb - 500 lb
(209-227 kg) based on line voltage

Power: 115 VAC or 230 VAC

Warranty: one year

Certifications: ETL and cETL listed to UL-60601-1®, CAN/CSA© C22.2 No.: 601-1-M90, EN 60601-1, IEC 60601-1-2




A portable hand-held controller and optional foot-operated controller can be positioned for convenient access from any point around the table. The portable hand-held and optional foot-operated controllers offer the freedom to adjust height, lateral roll, and Trendelenburg motions from locations away from the table, or when hands are busy with other functions. The hand-held controller hangs on an accessory rail when not in use.
