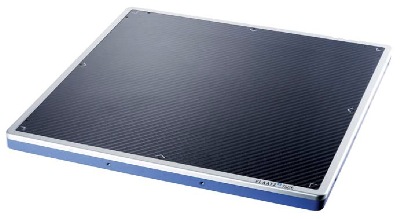

FLAATZ 750E

Large detecting area

High-quality radiographic images

High Resolution (High MTF)

Purpose: General Radiography
Detector Type: Flat panel Detector
Detecting Area: 423 x 423mm (17” x 17”)
Pixel Resolution: 2,560 x 2,560 pixels
Pixel Pitch: 168um
Preview Time: <4.5sec after X-ray exposure
A/D Convert: 14bits
Voltage: AC 100~240V±10% (50/60Hz)
Power Consumption: 12V, 2A maximum
Operation Environment: 5 to 35ºC
                                          20 to 75% RH (Non-Condensing)
Certifications: FCC Class A, UL60601-1,
                         CAN/CSA C22.2, EN60601-1
Dimensions (W x L x H) /Weight:
     Detector: 482 x 482 x 35mm / 6.2kg
     Control box:(PCI, PCI-e type)
                           269 x 280 x 50mm / 2.2kg
                           (Ethernet type)
                           269 x 280 x 50mm / 2.3kg
PC Requirement: CPU: Pentium IV or higher
                              At least one PCI or PCI express slot
                              O/S: Windows XP
Communication Interface: PCI, PCI-express based Frame grabber
                                             Ethernet Adaptor
Fill Factor: ~83%

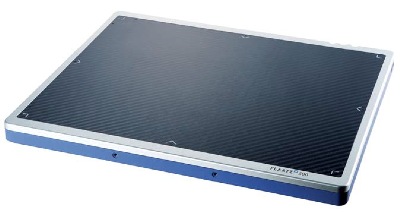

FLAATZ 500

Wide imaging area of 43cm x 36cm
High quality radiographic images
High Resolution (High MTF)
Application: Human Medicine,
Veterinary Market

Purpose: General Radiography
Detector Type: Flat panel Detector
Detecting Area: 344 x 421mm (14” x 17”)
Pixel Resolution: 2,560 x 3,072 pixels
Pixel Pitch: 139um
Preview Time: <4.5sec after X-ray exposure
A/D Convert: 14bits
Voltage: AC 100~240V±10% (50/60Hz)
Power Consumption: 12V, 2A maximum
Operation Environment: 5 to 35ºC
                                          20 to 75% RH (Non-Condensing)
Certifications: FCC Class A, UL60601-1,
                         CAN/CSA C22.2, EN60601-1
Dimensions (W x L x H) /Weight:
     Detector: 482 x 410 x 35mm / 5.7kg
     Control box:(PCI, PCI-e type)
                           269 x 280 x 50mm / 2.2kg
                           (Ethernet type)
                           269 x 280 x 50mm / 2.3kg
PC Requirement: CPU: Pentium IV or higher
                              At least one PCI or PCI express slot
                              O/S: Windows XP
Communication Interface: PCI, PCI-express based Frame grabber
                                             Ethernet Adaptor
Fill Factor: ~83%

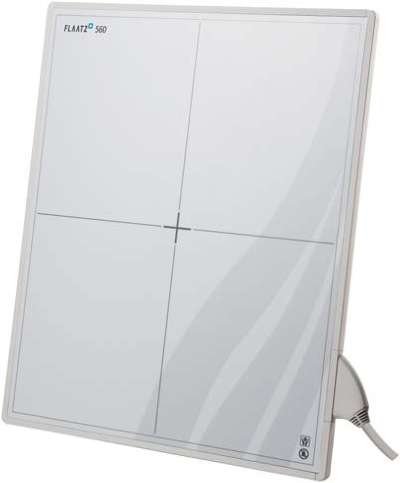

FLAATZ 560

Easy Upgrade to DR

Highest image quality (High resolution)

Portable use available

Application: Retrofit Market

Purpose: General Radiography
Detector Type: Flat panel Detector
Detecting Area: 35 x 43cm (14” x 17”)
Pixel Resolution: 2,560 x 3,072 pixels
Pixel Pitch: 139um
Preview Time: <5sec after X-ray exposure
A/D Convert: 14bits
Voltage: AC 100~240V±10% (50/60Hz)
Power Consumption: 12V, 2A maximum
Operation Environment: 5 to 35ºC
                                          20 to 75% RH (Non-Condensing)
Certifications: FCC Class A, UL60601-1,
                         CAN/CSA C22.2, EN60601-1
Dimensions (W x L x H) /Weight:
     Detector: 383 x 460 x 15mm / 3.7kg
     Control box:(Ethernet type)
                           269 x 280 x 50mm / 2.3kg
PC Requirement: CPU: Pentium IV or higher
                               O/S: Windows XP
Communication Interface: Ethernet Adaptor
Fill Factor: ~83%

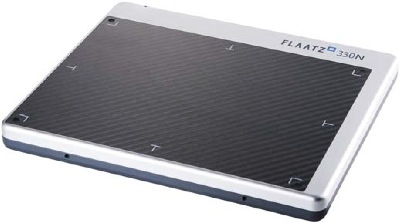

FLAATZ 330N

Slim & Light

USB Interface available

Application:
E.N.T. / Neonatal / Dental

Purpose: General Radiography
Detector Type: Flat panel Detector
Detecting Area: 193 x 264mm (8” x 10”)
Pixel Resolution: 2,048 x 1,536 pixels
Pixel Pitch: 129um
Preview Time: <6sec (PCI type) after X-ray exposure
                         <7sec (USB type) after X-ray exposure
A/D Convert: 14bits
Voltage: AC 100~240V±10% (50/60Hz)
Power Consumption: 12V, 2A maximum
Operation Environment: 5 to 35ºC
                                          20 to 75% RH (Non-Condensing)
Certifications: FCC Class A, UL60601-1,
                         CAN/CSA C22.2, EN60601-1
Dimensions (W x L x H) /Weight:
     Detector: 328 x 281 x 32mm / 2.7kg
     Control box:234 x 249 x 46mm / 1.8kg
PC Requirement: CPU: Pentium IV or higher
                              At least one PCI or PCI express slot
                              O/S: Windows XP
Communication Interface: PCI, PCI-express based Frame grabber
                                             USB type Frame grabber
Fill Factor: ~82%
