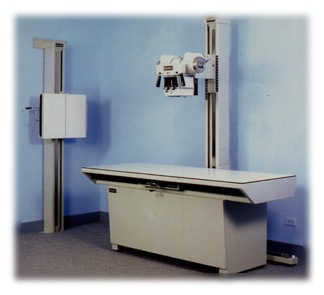

This ruggedly constructed table will consistently support
patient weights up to 350 pounds, making it ideal for
busy clinics with demanding caseloads. Heavy-duty, all-steel
construction and an extra-long pedestal create a durable
table that will last for years.
• Patient positioning is quick and easy on the
flat top table. Its smooth surface means no grooves
or ridges for clothes to snag or grime to collect.
• An integrated design provides continuous attachment
of the tubestand to the table and requires no modification
of office walls or ceilings.
• One feature enables a full range of off-table
procedures including stand-knee and ankle. The complete
system includes the Americomp Wallstand and your choice
of high-performance generators.
The
unique off-table tubestand option makes stand-knee
and ankle procedures possible on the AM3 system.
Every
radiographic generator design starts with essentially the same objective:
create x-rays efficiently and control their production. But how
the design accomplishes this objective is what makes the difference.
Americomp's approach to design is shown in the Spectra 325E.
The styling is clean and functional. The control panel is ergonomically
engineered both for comfort and ease of operation. Features like
SCR contactor, tube protection systems and a solid state digital
timer contribute to your imaging quality and satisfaction. Throughout,
a focused effort was made to provide safety for both patient and
operator.
The entire design philosophy is aimed at providing you a unique
combination of safety, reliability, quality and value. That is what
sets the Spectra 325E apart when it comes to the challenging
task of creating x-rays.
New paragraph
•
Maximum Output is 300 mA at 125 kVp. The power of a hospital grade
unit in a compact form ideal for a clinic or private practice.
• SCR Contactor with Back-Up Electromagnetic Safety Contactor
opens and closes the tube power circuit at zero voltage, preventing
tube damaging voltage spikes.
• Tube overload protection circuits alert the user if any
technique setting (kV, mA and time) exceeds the tube rating, and
prevents an exposure.
• Digital mAs reduces user reading error and improves setting
accuracy and repeatability.
• 8 Step Line Compensator
• 5 mA Stations (50s, 100s, 150L, 200L, 300L), mA output
is precisely controlled through automatic space charge compensation
over the entire mA and kVp range.
• Digital Timer with 23 Stations (1/120 to 6 seconds) 14
time stations below 1/2 second easily accommodate the use of rare
earth intensifying screens.
• kVp Range, 40 to 125 kVp, Adjustable in 2 kV Increments
• Two Bucky Selector Switch
• Vinyl Wear-Resistant Control Panel face cleans easily.
• Five-Year Limited Warranty
• Compatible with many A.E.C. Systems
• Complies with Federal Standards at time of shipment
• UL Classified

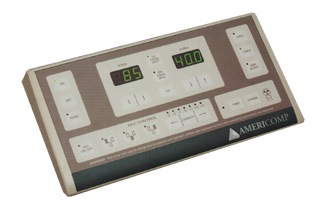

The
SPECTRA 30HF incorporates the latest technology available
today. From automatic line compensation that adjusts for variance
in incoming line voltage, to tube protection, which prohibits
exposures with excessive kVp and mAs. Safe, reliable and consistent
performance of the SPECTRA 30HF generator is what you can
expect.
The operator console is remarkably easy to use. The operator simply
enters the kVp and mAs technique factors. The SPECTRA 30HF
generator automatically selects the highest mA and shortest exposure
time possible. The dual mAs/ma digital display provides the operator
with the opportunity to view the mA the SPECTRA 30HF selected.
Giving the operator total control, the mA can be modified when
longer exposure times are desired.
The optional state-of-the-art Automatic Exposure Control (AEC)
provides consistent film density, even when pathology is present.
With up to three fields in the AEC chamber, the operator simply
selects the field(s) under the anatomy of interest and enters
the kVp. The SPECTRA 30HF will terminate the exposure at
the exact mAs necessary to obtain a high quality film. After the
exposure, the mAs value will be displayed for reference and documentation.

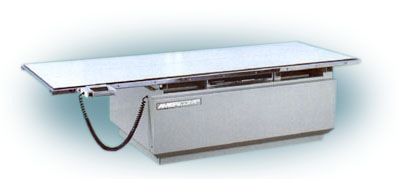

The
A-4000 is a heavy duty, 4-way float top elevating table designed
especially for the hospital, clinic or private office. This ruggedly
designed compact modular system allows for easy handling of heavy
case loads even in the smallest of rooms. Patient transferring
is made easy with the hand operated table function control which
mounts conveniently to the accessory rail. The flat, unseamed
table top glides easily on precision ball bearings making patient
positioning effortless. Made in the U.S.A., Americomp's 4-way
float top elevating table assures quality craftsmanship with quick
delivery and easy access to replacement parts.
• 30" W x 84" L Certified Float Top
• Variable Vertical Lift from 22 1/2"-34"
• 32" Longitudinal Travel, Plus or Minus 5" Transverse
• 51" Enclosed Table Base (at 22 1/2")
• +/- 16" longitudinal table top travel (from center)
• +/- 5" transverse table top travel (from center)
• Flat unseamed table top
• Foot Activated electric locks and table function controls
• 120 VAC
• Table weight 650 lbs.
• Rated patient load of 400 lbs.
• Low wattage electric locks
• Includes Grid Cabinet with Electric Lock, 20" travel
• 103L 8:1 aluminum grid also included
• Welded all steel construction
• Easy serviceability through removable front panels and slide
out electrical panel
• Left or right handed user
OPTION: Reciprocating par-speed bucky - with 8:1 ratio, 85
line grid

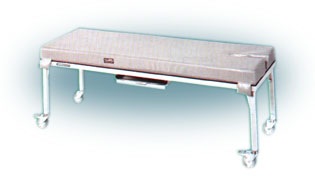

Built of welded all steel construction, Americomp's A-3100 and
A-3199 x-ray tables are sleek yet sturdy enough to handle heavier
patient loads. And with the optional drop leaf feature, these
tables will accommodate even the smallest of x-ray rooms. Made
in the U.S.A., all of Americomp's competitively priced tables
carry a five-year defective parts warranty.
A-3100
LOW COST STATIONARY TABLE • 24" wide certified table top
• Available in 56" or 76" length
• Includes PBL Grid Cabinet
• 30" leg length only
• Rated patient load of 300 lbs.
A-3199
MOBILE X-RAY AND EXAMINATION TABLE
•
24" wide certified table top
• Available in 56" or 76" length
• Includes non-PBL Grid Cabinet
• 103 line, 8:1 aluminum grid also included
• 4" hospital-grade locking swivel casters
• Rated patient load of 300 lbs.
• Available in 20", 24" or 28" Table Heights
OPTIONS
•
ATO-1 Drop Leaf
12" non-radiographic drop leaf. Specify right or left.
• AT0-2 Table Pad
Removable 4" high-density foam pad with facial slot.
• AT0-3 Reciprocating Bucky
Par speed, 14" x 17" with 85 line, 8:1 grid. Replaces
grid cabinet and grid. Available only with A-3100 Stationary Table.
