Provides highly repeatable and accurate measurements of black and white film densities. Large LED numerals can be read easily in bright or dim light.

Product Features:

  • Measuring range: 0-5.0D with 2 and 3mm apertures; 0-4.0D with 1mm aperture
  • Scale factor (slope) stability: ±1% per 6 months
  • RS232 output (optional)

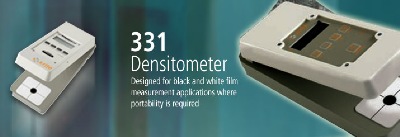

Designed for black and white film measurement applications where portability is required. Self-contained light table accommodates film up to 11 inches wide.

Product Features:

  • Measuring range: 0-3.5D (1mm) 0-4.0D (2mm)
  • Battery operated
  • Scale factor (slope) stability: ±1% per 6 months
  • Measuring area: 1 & 2 mm
  • Measuring length: 5.5 inches
  • Certified step wedge

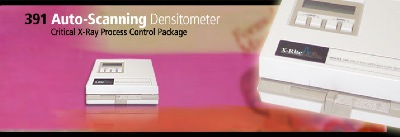

Includes all capabilities of the 390U, plus automatically establishes aim values and control limits, calculates cross-over values, and plots monthly control charts. Able to deliver processor quality control data, via modem, across phone lines.

Product Features:

  • Measuring range: 0-4.5D
  • Data storage: 12 Channels / 31 readings per channel
  • Aim Value Editor / Control Limit Editor
  • Displays 21 density readings and QC parameters (base plus fog, speed, contrast index, average gradient, D-Max, and gamma)





Provides single-sided exposures and produces repeatable 21 step exposures on film.

Product Features:

  • Exposure stability: ±.02 log exposure per year
  • Unit-to-unit repeatability: ±.02 log exposure
  • Power requirement: 9 volt alkaline battery (included) approx. 10,000 exposures/battery
  • Light modulation: 21-step wedge, 0.15D per step
  • Blue color peak wavelength: 455nm ± 10nm
  • Green color peak wavelength: 512nm ± 10nm
  • Designed and manufactured to comply with the calibration requirements described in DIN V 6868-55
