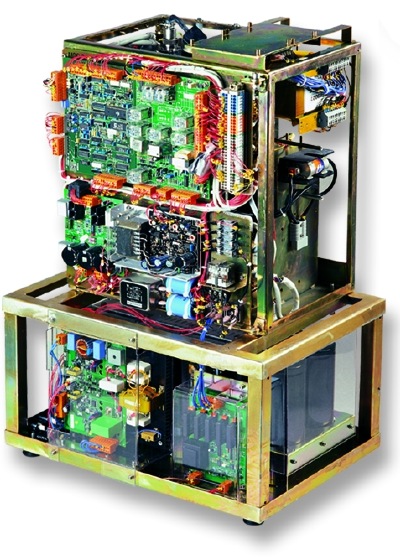

Low speed H.F X-Ray generators

Low / medium speed generator

Specifications  1 Tube / 2 Tubes / 3 Tubes


CONSTANT POTENTIAL POWER RATINGS 32 kW 40 kW 50 kW 64 kW 80 kW
RADIOGRAPHIC kVp RANGE IN 1 kVp STEPS 40 - 125/150 40 - 150
mA RANGE 10 - 400
 10 - 500 10 - 640 10 - 640 10 - 800
EXPOSURE TIME RANGE 0.001 - 10 seconds
mAs RANGE
(*) 640 mAs or more - on request 0.1 - 500 mAs (*)
AUTOMATIC EXPOSURE CONTROL Optional
TOMO Optional
BUCKYS (2 UNITS STANDARD) Optional up to 4
ANATOMICAL PROGRAMMER Optional
INTEGRATED HIGH SPEED STARTER Optional FLUOROSCOPIC kVp RANGE IN 1 kVp STEPS 40 - 120
FLUOROSCOPY
FIXED PPS
VARIABLE PPS (OPTIONAL) at 50Hz    at 60Hz
50 PPS  60 PPS
1, 2, 5, 12.5, 25  1, 3, 6, 15, 30

AUTOMATIC BRIGHTNESS CONTROL Optional 3/2 POINT OPERATION CONSOLE 3 P. Standard/2 P.Optional
DIGITAL IMAGE SYSTEM INTERFACE Optional
LINE VOLTAGE RANGE (VAC) 230/240/400/ 415/440/480 400/415/440/480
LINE PHASES Single Phase/Three phase Three phase
AUTOMATIC LINE COMPENSATION ±10%
MINIMUM POWER LINE REQUIREMENTS ACCORDING TO IEC 601-2-7






High Frequency X-Ray Generators Capacitor Assisted Series

Specifications

CONSTANT POTENTIAL POWER RATINGS 32 kW 40 kW 50 kW
RADIOGRAPHIC kVp RANGE IN 1 kVp STEPS 40 - 125/150
mA RANGE 10 - 320
10 - 400
10 - 500

EXPOSURE TIME RANGE 0.001 - 10 seconds
mAs RANGE 0.1 - 500 mAs (*)
AUTOMATIC EXPOSURE CONTROL Optional
TOMO Optional
BUCKYS (2 UNITS STANDARD) Optional up to 4
ANATOMICAL PROGRAMMING Optional
¹ TOUCH SCREEN CONSOLE Optional. 3/2 points Operation Console
Optional DIGITAL IMAGE SYSTEM INTERFACE
AUTOMATIC LINE OPERATION (100/110/208/230/240 VAC +/-10% - Single Phase
from 8 to 20 Amps LINE POWER REQUERIMENT
RECHARGE TIME BETWEEN EXPOSURES: (FOR EXPOSURES AT MAX MaS) 3 seconds.
MINIMUM POWER LINE REQUERIMENTS ACCORDING TO IEC 601-2-7 = 2000 W (Peak-one second) (x-ray tube stator + generator)
