SPECTRA 30HF incorporates the latest technology available
today. From automatic line compensation that adjusts for variance
in incoming line voltage, to tube protection, which prohibits
exposures with excessive kVp and mAs. Safe, reliable and consistent
performance of the SPECTRA 30HF generator is what you can

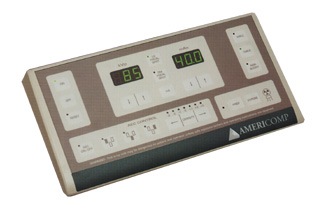

The operator console is remarkably easy to use. The operator simply
enters the kVp and mAs technique factors. The SPECTRA 30HF
generator automatically selects the highest mA and shortest exposure
time possible. The dual mAs/ma digital display provides the operator
with the opportunity to view the mA the SPECTRA 30HF selected.
Giving the operator total control, the mA can be modified when
longer exposure times are desired.
The optional state-of-the-art Automatic Exposure Control (AEC)
provides consistent film density, even when pathology is present.
With up to three fields in the AEC chamber, the operator simply
selects the field(s) under the anatomy of interest and enters
the kVp. The SPECTRA 30HF will terminate the exposure at
the exact mAs necessary to obtain a high quality film. After the
exposure, the mAs value will be displayed for reference and documentation.
radiographic generator design starts with essentially the same objective:
create x-rays efficiently and control their production. But how
the design accomplishes this objective is what makes the difference.
Americomp's approach to design is shown in the Spectra 325E.
The styling is clean and functional. The control panel is ergonomically
engineered both for comfort and ease of operation. Features like
SCR contactor, tube protection systems and a solid state digital
timer contribute to your imaging quality and satisfaction. Throughout,
a focused effort was made to provide safety for both patient and
The entire design philosophy is aimed at providing you a unique
combination of safety, reliability, quality and value. That is what
sets the Spectra 325E apart when it comes to the challenging
task of creating x-rays.
Maximum Output is 300 mA at 125 kVp. The power of a hospital grade
unit in a compact form ideal for a clinic or private practice.
• SCR Contactor with Back-Up Electromagnetic Safety Contactor
opens and closes the tube power circuit at zero voltage, preventing
tube damaging voltage spikes.
• Tube overload protection circuits alert the user if any
technique setting (kV, mA and time) exceeds the tube rating, and
prevents an exposure.
• Digital mAs reduces user reading error and improves setting
accuracy and repeatability.
• 8 Step Line Compensator
• 5 mA Stations (50s, 100s, 150L, 200L, 300L), mA output
is precisely controlled through automatic space charge compensation
over the entire mA and kVp range.
• Digital Timer with 23 Stations (1/120 to 6 seconds) 14
time stations below 1/2 second easily accommodate the use of rare
earth intensifying screens.
• kVp Range, 40 to 125 kVp, Adjustable in 2 kV Increments
• Two Bucky Selector Switch
• Vinyl Wear-Resistant Control Panel face cleans easily.
• Five-Year Limited Warranty
• Compatible with many A.E.C. Systems
• Complies with Federal Standards at time of shipment
• UL Classified
