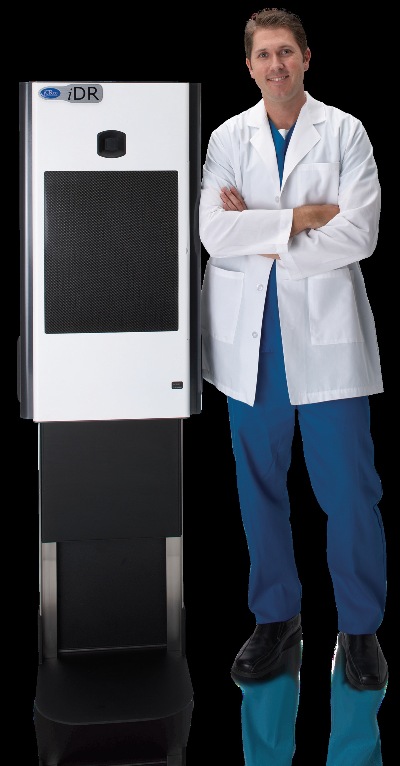

With iCRco’s direct digital solution iDR you no longer handle cassettes. iDR is fixed in your exam room and it is a sealed scan head technology. Unlike other DR systems available today, iDR can be completely integrated into your existing Rad Room ensuring maximum uptime and ease of transition when converting to digital. It can be on a u-arm, bolted to a wall stand or located inside a table. iDR streamlines your workflow because it is simple to use and fast. iDR doesn’t require the physician to upgrade an existing x-ray room making this DR second to none for low cost of entry to the digital environment. No cassettes to handleEasy patient positioning. One moving part. Sealed scan head technology. Touch screen capable image processing software. Easy integration to any X-ray room.



                       Spatial Resolution for iDR

Pixel/mm     Pixel Size (Microns)     Line Pairs     DPI
     5                         200                        2.5           163
    10                        100                          5            254

Grayscale Resolution: 16 bits/pixel source file, 65536 Shades of Gray


Capture Time:32 seconds


Configuration: Wall mounted, bolted to a u-arm or inside a table


Weight: 50 lbs

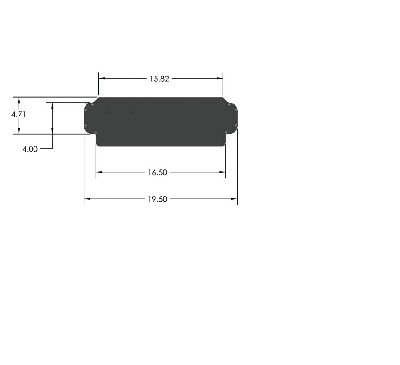

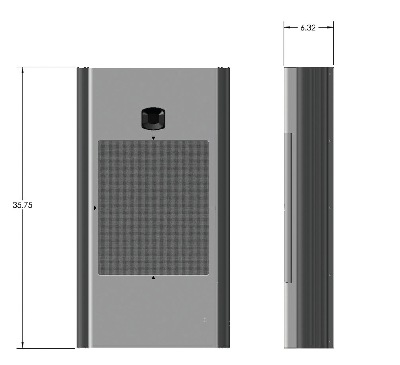

Dimensions: W 19.5" X D 6.32" X H 35.75"

Power Source: 100-240V AC/ 2.5A max; 47-63Hz (Universal Power Supply)

Heat Generation: Standby 230W, Maximum 1610W

  • Temperature; 0-40 °C/32-105 °F
  • Temperature change: 0.5 °C/min

Operating Conditions:

  • Humidity: 15%-95% RH,
  • Magnetic Fields: max 1260 µT
  • (in Conformance with EN 61000-4-8: Level 3), 10 A/m


* Specifications are subject to change without notice. Processing and display time dependent on processor speed, RAM disk access time, and video card.



Clarity Captera™ Features

• iDR includes Clarity Captera™ — Intuitive touch screen capable acquisition software

• Smart scanning- manipulate acquired images while additional cassettes are being scanned

• ICE2 image processing; further manipulate images to your preference, automatically applies proper algorithms for an anatomy

• Smart search, sort, and filter options

• Integration with front office management systems like RIS and EMR

• Full set of annotation and measurement tools

• User preferred settings and privileges


iDR Features

• No cassettes to handle

• One moving part

• Sealed scan head technology

• Superior image processing software

• Easy integration to any X-ray room

• Diagnostic quality excellence
