The Konica Minolta DRYPRO 793 is a
top performer in imaging capacity and
diagnostic quality that provides superb
workflow versatility and efficiency.
Newly configured for mammography
applications, the DRYPRO 793 is the
perfect complement for busy departments
looking for high resolution, high
throughput, film sorting capability, and
a reduced footprint that takes up
significantly less floor space than
other high capacity imagers.
All this is delivered in an affordable
package that will meet and exceed your
needs for years to come.

Capable of printing 4 film sizes (14×17, 11x14, 10×12, 8×10-inch) as well as adaptability to ever more diverse modalities. This versatility satisfies the size needs of CR, CT, MRI, Ultrasound, and Mammography all in one imager.
Even with an optional six-tray sorter installed, the DRYPRO 793 boasts a footprint of a mere 0.43m², making it one of the smallest full-size, multi-modality dry imagers available.

A Start Timer function automatically powers and warms up the unit by the time you get into the office. Previous Page printing makes reprinting films quick and easy. Status indicators let you know how much film remains in each tray.

One film tray is mounted in the standard configuration with optional second and third trays available. 14-inch(accepts 14×17,11×14-inch), 10-inch(accepts 10×12-inch) and 8-inch(accepts 8×10-inch) trays are available as options, providing flexibility of configuration to meet user needs. Additionally, a 6-channel sorter is offered to facilitate post-print sorting.

The DRYPRO 793 features a large, color, LCD touch panel. The crisp clear display provides easy reading in many selectable languages. The menus are intuitive and easy to navigate.
The DRYPRO 793 also features new screen layouts for displaying film type and size and system status.

The DRYPRO 793 provides animated instructions in the event the imager runs out of film or requests some action for the user. The step-by-step animation presents procedures in an easy to understand format that facilitates quick resolution. This feature frees the user from the burden of referring to manuals in the course of day-to-day operation and makes the unit easy to use even for an inexperienced operator.

DRYPRO 793 is furnished with a Web maintenance function that allows the user to use a PC on the same network to access such information as the device status and print progress via the web browser. This affords the user an added degree of security by enabling access to print progress from modalities at remote locations.

Specifications of DRYPRO Model 793

Laser Source Semiconductor laser

Film Size 14"×17" (35×43cm), 14"×14" (35×35cm), 11"×14" (28×35cm),
10"×12" (25×30cm) and 8"×10" (20×25cm) selectable

Film Dry image recording film SD-P/SD-PC

Image format 1,2,4,6,8,9,12,15,16,20,24,25,30,35,36,42,48,54,56,60,63,64

Image memory Hard disk (80GB/standard), Print memory (512MB/standard)

Input Port 16 ports (max.)

Number of pixels (14"×17") REGIUS connection:8079×9752 pixel
None REGIUS connection:7805×9336pixel

Pixels size 43.75μ (standard)・25μ (fine) *optinal 1GB memory are required
and only available for 11"×14", 10"×12" and 8"×10" films.

Image data input 8 bits/12bits

Output gradation 16384 levels (14bits)

Image mode Pixel replication/Function interpolation process

Processing capability Approx. 120 sheets (14"×17")/hour

Input interface Ethernet 10 base-T/100 base-TX

Protocol DICOM Print Management

Supply Max. 3 channels. 14 inch tray is always the 1st tray,
2nd and 3rd trays are selectable (14"×17", 10"×12", and 8"×10").

Standby function Start timer/Nighttime standby
Boarder processing

Trimmed frame Available

Density Correction Automatic via built-in densitometer

Positive/negative Available

DICOM functions Presentation LUT service class/Requested Image Size

Noise Level Printing:55dB or less
standby:50dB or less

Operating condition 15-30℃ (59-86F) 30-70% RH (no condensation)

Power 100-120V AC/220-240V AC, 9.0-7.5A/4.5-4.0A

Heat generation Approx. 1200kJ/hour (approx. 286kcal/hour)

Foot Print 0.43m²

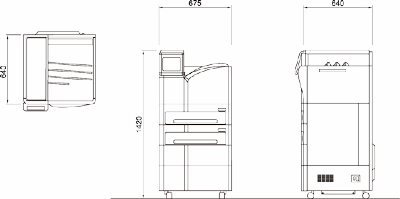

Dimensions W675×D640×H1420mm
W26.5×D25.1×H55.9 inch

Weight approx. 255kg (561lb) *with 2film trays

Applicable IEC60601-1-2:2001, IE60601-1:1988,

Accessories Power Cable, Operation Manual,
Cutter (for film loading),

Options Sorter LiS-793, Expanded Print Memory (1GB),
Tray Kit (all 14inch, 10inch and 8×10inch),
Tray cover, Deodorant Filter, Cleaning sheet
