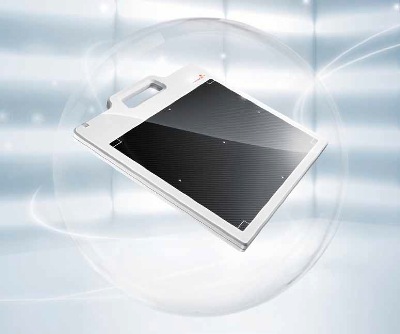

Wide Portable Image Processing Unit
Vatech’s state of the art Xmaru1210P is a wide portable image processing unit that provides highly superb image resolution quality, wider active image area, and versatile applications from extremity to veterinary. Its unique size ensures of many advantages like getting one image of a wide area with only one shot, thus enabling you to use it on various applications. Its maximum active area is at 13”X11”. The compact and light Xmaru1210P is guaranteed to satisfy your daily diagnostic needs.

Wide Portable Flat Panel Detector
Its unique size provides for a large active area of 13”X11”, which helps
you see more from its acquired image. Its light and compact design is
useful in various applications.

Superior Diagnostic Image Quality
It has a pixel pitch of 127μm, which is a guarantee for a highly superb
quality of image resolution. In addition, its single panel design with
eliminated butt area, enhances the image quality and produces more
reliable images. It’s “a-Si TFT active matrix” enables it to provide
superior image resolution. It guarantees constant and reliable
performances in its any temperature and humidity.

Versatile Applicable Areas
▶ Extremity : Since it is portable, it is much more flexible. It is capable
of taking different angle shots of the patient’s extremities.
▶ Pediatrics : Its unique size is sufficient enough for pediatric
applications. Its portable size minimizes fear among children upon
taking X-ray images. Its adequate size optimizes your investment for
system application to children.
▶ Veterinary : It is good for joint of equine or whole body of small
animal.

Superior Diagnostic Image Quality

The use of the detector for extremities is very convenient since
it is larger than conventional medium size detectors. This
detector can accommodate the full image of a big-sized foot at one shot.
The last few inches makes the ultimate difference in your daily diagnostic
needs.
Xmaru1210P is designed with indirect method, thus allowing you to run
the equipment under a reliable condition without being interrupted
when less heat is generated. Indirect method provides constant pixel
value, which ensures you with a more accurate diagnostic image.
> Its wide detector area allows you to capture large images in one shot,
especially for veterinary applications. It makes it easier for you to
capture images of joints, neck, or leg of an equine with just one shot
which has never been realized by conventional detectors for veterinary
purposes.

Xmaru1210P allows you to run the equipment under a reliable condition without stopping
as less heat is generated. a-Si TFT technology provides constant pixel value, thus ensuring
more precise diagnostic images.

DICOM 3.0 compatible, DICOM Patient CD, DICOM Basic Print
Print Management Service Class(SCU), Storage Service Class(SCU), and others
Image stitcting(semi-auto) & Fast & Ideal
Image Processing
Easy user interface & simple workflow

Detector type Amorphous silicon
Scintillator CsI:Tl
Pixel matrix 2560 x 2080
Effective Pixel matrix 2520 x 2040
Pixel pitch 127 μm
Energy range 40-150 kV
Dimensions 422 x 403 x 22 mm
Weight 3.4 kg
