DUAL VET X

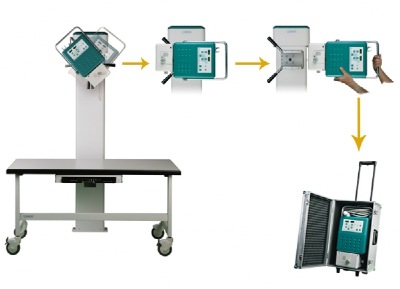

The X-ray equipment designed for use Bivalent:

● Portable, for field use - weighs 15kg, and requires only 10 amps to operate.

● Its extraordinary power (8KW!), And mechanics added, make it a stationary system of high performance, for use in clinic.

Specifications

● Power Output: 8 kw (constant power)

● Inverter VERY HIGH FREQUENCY: 300 kHz

● X-Ray Tube Focus DOUBLE: 0.6/2.8 mm

● Maximum voltage 110 kVp

● Maximum current: 100 mA

● maximum mAs 200 mAs

● Operation Mode: 2-point radiographic technique (kV and mAs)

● REGULATION of the Power Line: from 90 to 285 volts ● ADAPTATION of the output power according to characteristics of the electric supply.
