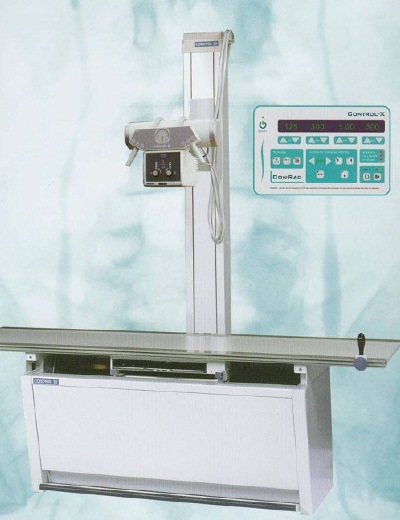

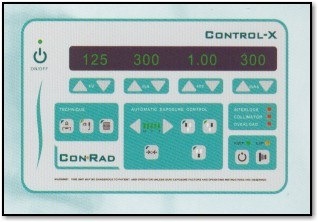

The ConRad High frequency generator is developed to match the rigorous use of small but busy radiology departments with today's newest technology. The membrane switch surface offers a clean, easy to use generator control design with flexibility in powering a variety radiographic applications. Integrated self diagnostic ensures ensures easy trouble free operation and easy service.
Features:
Microprocessor control delivers reliability and accurate exposure parameter management.
Manual three factor factor selection permits the operator to modify the recommended kV, mA and time.
Automatic tube protection.Sophisticated self-diagnostic capability and coded error messaged allow for fast and well-defined initial diagnostics.
Compact console is ideally suited for small control rooms.
Automatic Exposure Control can support two ion chambers.
Compact design fits into small x-ray rooms.
Specifications
Power Rating 20-30 kW kV range 40-125 kVp mA range 25-300 mA (20 kW), 25-400 mA (30 kW) mAs range 0.05-600 mAs Exposure time 3 ms-6 sec. Power Requirements 208/240 VAC single phase

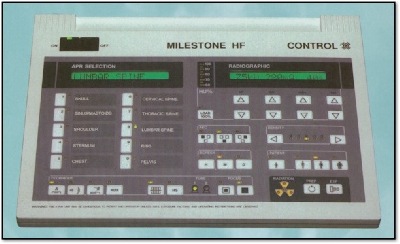

The Milestone high frequency generator is developed to match the rigorous use of busy radiology departments, private practices with today's newest technology. The digital display and soft touch membrane key panel provides a clean, easy to use generator control design with flexibility in powering a variety radiographic applications. Integrated self diagnostic ensures ensures easy trouble free operation and easy service
Features:
Microprocessor control delivers reliability and accurate exposure parameter management.
APR operating mode with 100 examination distributed across 10 anatomical regions. Simple and user-friendly technique reprogramming on site.
Manual three factor factor selection permits the operator to modify the recommended kV, mA and time.
Supports one or two x-ray tubes in either radiographic or radiographic and fluoroscopic mode.
Specifications
Power Rating 30-80 kW kV range 40-150 kVp mA range 20-1000 mA (depending on the generator power) mAs range 0.4-600 mAs Exposure time 3 ms-6 sec. Fluoroscopic kV 40-120 kV Fluoroscopic mA 0.5-10 mA (25 mA in Pulse Fluoroscopy) Power Requirements From 240 VAC single to 480 three phase

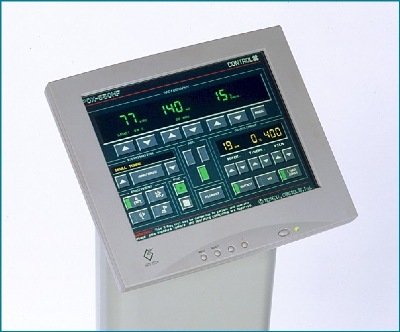

The PCX HF high frequency generator family matches the needs of busy radiology departments with today's technology. The coherence of touch screen and color LCD display offers a unique generator control with great flexibility in powering a variety radiographic and fluoroscopic applications. The integrated self diagnostic ensures trouble free operation and comprehensive service.
Features:
Microcontroller and computer integration deliver reliability and accurate exposure parameter management.
APR operating mode with 160 examination distributed across 8 anatomical regions. Simple and user-friendly technique reprogramming on site.
Automatic parameter correction for patient thickness, tissue density, film.screen speed and source image distance.
Manual override technology permits the operator to modify the recommended kV, mA and time.
Sophisticated self-diagnostic capability and descriptive error messaged allow for fast and well-defined initial diagnostics.
Compact display console is ideally suited for small control rooms.
Comprehensive service program provides accurate troubleshooting and minimize downtime.
Automatic tube overload protection, selectable 80% or 100%.
Automatic Exposure Control can support either four solid state detectors or ion chambers.
Supports one or two x-ray tubes in either radiographic or radiographic and fluoroscopic mode.
Specifications
Power Rating 30-80 kW kV range 40-150 kVp mA range 20-1000 mA (depending on the generator power) mAs range 0.4-600 mAs Exposure time 3 ms-6 sec. Fluoroscopic kV 40-120 kV Fluoroscopic mA 0.5-10 mA (25 mA in Pulse Fluoroscopy) Power Requirements From 240 VAC single to 480 three phase
