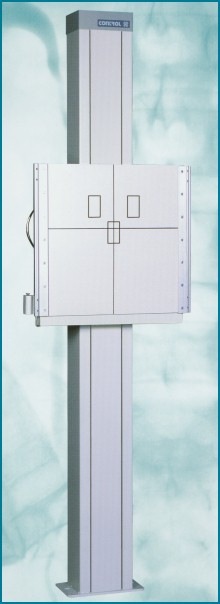

The WS 99 stand is a floor to wall mounted vertical receptor, which offers solutions for all diagnostic-imaging needs for hospitals, clinics or private practice settings. The dual rope counter-balanced system provides for smooth and easy vertical positioning. WS 99 offers maximum stability with minimum effort of movement.



The WS 99 vertical travel is effortless and is suited for thorax, spine, abdomen and pelvic exposures. In addition, the extended vertical travel track allows for skull exposures of tall patients as well as lower-extremity exposures. Right or left hand loaded Bucky or grid cabinet design offers complete versatility in operator preference. Accepts a variety of cassettes, grids and optional AEC detectors.



The WS 99 is compatible with most radiographic examination settings. It is designed to handle the rigors of the heaviest caseloads.


Features:


Low absorption front panel material reducing patient exposure.

Electrical or mechanical brake by choice

Convenient operating control at the Bucky side."Easy-Glide" system for effortless movement for vertical travel.

Extended vertical track allows full skull exposure of tall patients as well as lower extremities

Support rails for a variety of patient positioning accesories including, patient handgrips, head clamp, compression device and hip support.

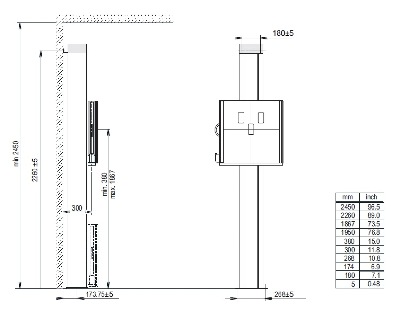

Specifications:


Vertical Bucky travel 58 1/2" (149 cm)
Minimum center to floor distance 15" (38 cm)
Minimum ceiling hight 90 1/2" (230 cm)
Power Requirements 24 VAC, 50/60 Hz

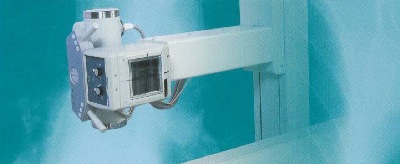

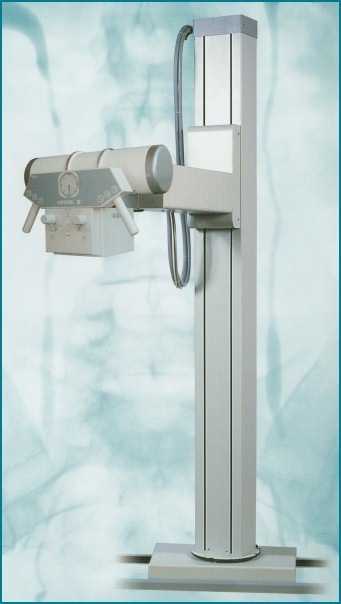

The TS 99 tube stands offer solutions for all diagnostic-imaging needs for hospitals, clinics or private practice settings. It offers maximum stability with minimum effort of movement.
Available in freestanding, floor to ceiling or to wall mounted versions with stationary or rotational column and/or transverse arm movement.
TS 99 glides effortlessly along the length of the table. The counter-balanced tube arm support system provides for smooth and easy vertical positioning. The extended vertical travel track allows for skull examinations of tall patients as well as the lower-extremity areas.
Accessible fingertip controls of all movements allows for trouble-free use by the operator. All movements positively secured for exposure.
The TS 99 series is compatible with most radiographic examination tables and is designed to withstand the rigors of the heaviest caseloads.




Features:

Centrally located tube stand control.

Electromagnetic brakes.

Dual rope counter balancing system  for maximum security.

"Easy-Glide" system for effortless movement for vertical travel.

Extended vertical track allows full skull exposure of tall patients as well as lower extremities.

Transversal tube movement (TS 99T).Rotational column (TS 99R).

Rotational column with transversal tube movement (TS 99RT).

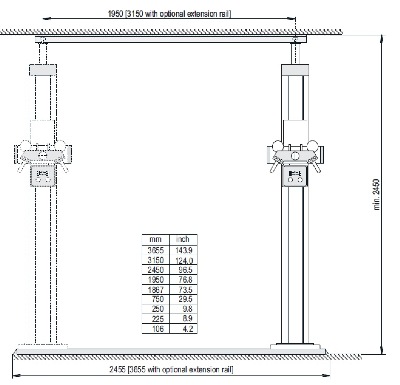

Specifications:

TS 99, TS 99T
Vertical travel: 63 3/4" (162 cm)
Min. Floor-Focus distance: 9 3/4" (25 cm)

TS 99R, TS 99RT
Vertical travel: 59 1/2" (151 cm)
Min. Floor-Focus distance: 9 3/4" (25 cm) or 13 3/4" (35 cm)

TS 99T, TS 99RT
Transversal tube travel: 8 1/2" (21 cm)
Longitudinal travel: 76 3/4" (195 cm)  [opt.124 3/4" (317 cm)]
Rotation at horizontal axis: ± 180 º
Power Requirement: 24 VAC 50/60 Hz

"T" Transversal tube movement, "R" Rotational Column , "RT" Rotational column with transversal tube movement.
